Sennuopu professional audio best aluminum box auto electronics subwoofers with built in amplifier
Sennuopu professional audio best aluminum box auto electronics subwoofers with built in amplifier
Regular price
$799.99 USD
Regular price
$0.00 USD
Sale price
$799.99 USD
Unit price
per
Couldn't load pickup availability
▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲
★★★ professional audio best aluminum box auto electronics subwoofers with built in amplifier ★★★
Product Description

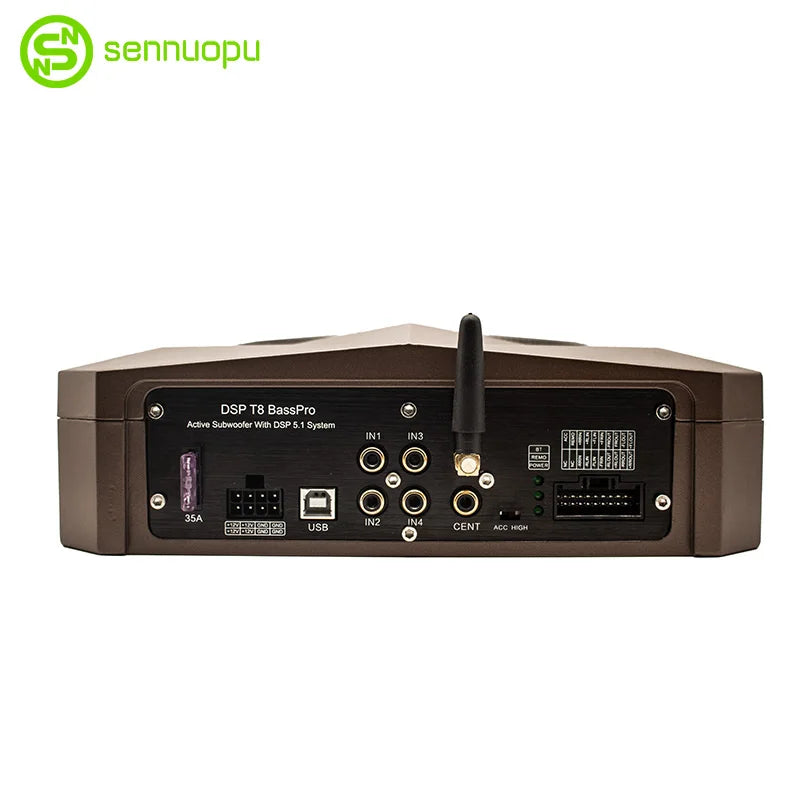

Don’t have room for a separate subwoofer and amplifier but want a simple way to enhance your sound system? The DSP T8 BassPro is the all-in-one product that meets your needs. The DSP T8 BassPro features an 8-inch subwoofer, amplifier and DSP in a self-contained unit. Measuring just 344*244*78mm, the DSP T8 BassPro is small enough to be mounted under a seat, so it does not take up any usable storage space. The 8” subwoofer has a flat diaphragm and produces quality, low-end bass within its shallow cast-aluminum enclosure.
Product Technical Specification
|
Items
|
Specification
|
|
Working voltage
|
10V～17V
|
|
Frequency response
|
20Hz～20KHz
|
|
S/N Ratio
|
>80dB
|
|
THD+N
|
< 0.01%
|
|
Boost Clock
|
-12dB-+12dB
|
|
Filtering slope
|
6dB/Oct~24dB/Oct
|
|
Q value
|
0.404~28.85
|
|
Delay
|
0~5.4ms/0~187cm/0~74in
|
|
Power output
|
4X50W+1X200W@4Ω
|
|
Equalizer
|
31 band
|
|
High level input
|
4 channels
|
|
RCA input
|
4 channels
|
|
BT5.0 input
|
Support
|
|
Sound card input
|
Support
|
|
AUX input
|
Support
|
|
PC Tuning program
|
Support windows
|
|
Phone Tuning program
|
Android phone APP
|
Product Advantages
Competitiveness-1
1. Rugged all-aluminum cast speakers, DSP T8 BassPro is inspired by Lamborghiny-Ravinton series, which means to achieve the excellence and cool of Ravinton.
2. DSP T8 acoustic experts in order to pursue the best sound quality, in the design of the shell, the SKD61 heat abrasive tool steel and the thickness of the box to reach 40mm aluminum casting process, the box surface treatment using automotive spray paint process standards, wear resistance and heat transfer and other special requirements.
Competitiveness-2
Built-in high sound quality digital sound processor
Two dual-core high-end Hi-RES audio processing chips are adopted, and the computing power reaches 294.9mhz. The appeal of the instrument and the separation end of the sound are very natural. Four sets of advanced DAC conversion modules are adopted to restore the original sound to a greater extent, with richer performance in details.
Competitiveness-3
1. OPAMP: NJM4580 High gain bandwidth, high output current and low distortion rate.
2. A/D Encoder: AK5358ADC Large capacity data acquisition chip with lossless compression and error correction technology, low distortion, better SNR, larger dynamic range, AD/DC relative independence.
3. D/A Decoder: CS4344 Super DAC audio decoder chip, low distortion, better SNR, larger dynamic range, AD/DC relative independence.
4. Capacitance: CHEMI-CON Fast speed, low loss, balanced sound quality, clear high-frequency, more details in middle and high frequency, well structured.
5. Power Amplifier TDP7851&TDA8954J Pair power amplifier class AB and class D, designed for high-power car radio. In addition to the outstanding output current capability and distortion performance.
6. DSP chip: ADAU1450 Professional, modular, integrated ROM/RAM, programmable enhanced sound signal processing, DSP specially designed for audio, better anti-interference ability, EQ better expansibility.
Details Images
Business Activity
We have participated in exhibitions all over the world, recruited regional agents all over the world, created win-win business conditions, and fully supported agents in local business activities，We provide comprehensive technical services and installation instructions to help you quickly start your business.
